Audio Products
TS5510
2-ch Mic Amp AFE
Overview
Triad's TS5510 two channel, low noise programmable gain input amplifier is an audio front-end (AFE) designed for both modern at-home recording and professional mixing console applications. This innovative solution boasts an optimized gain topology, capable of matching both high and low-level inputs to contemporary ADCs, while preserving exceptional SNR with flexible digital gain control. The TS5510 delivers enhanced performance gain and attenuation modes in a small, easy to use QFN form factor.
- 2-ch analog audio input solution
- Low noise inputs
- Seamless gain transitions
- SPI control
- High CMRR
- +28 dBu input capability
- Simplifies input circuitry (no pad needed)
- Optimized for latest audio ADC solutions
- Compact PCB solution
- Wide gain range, digitally controlled
Diagrams

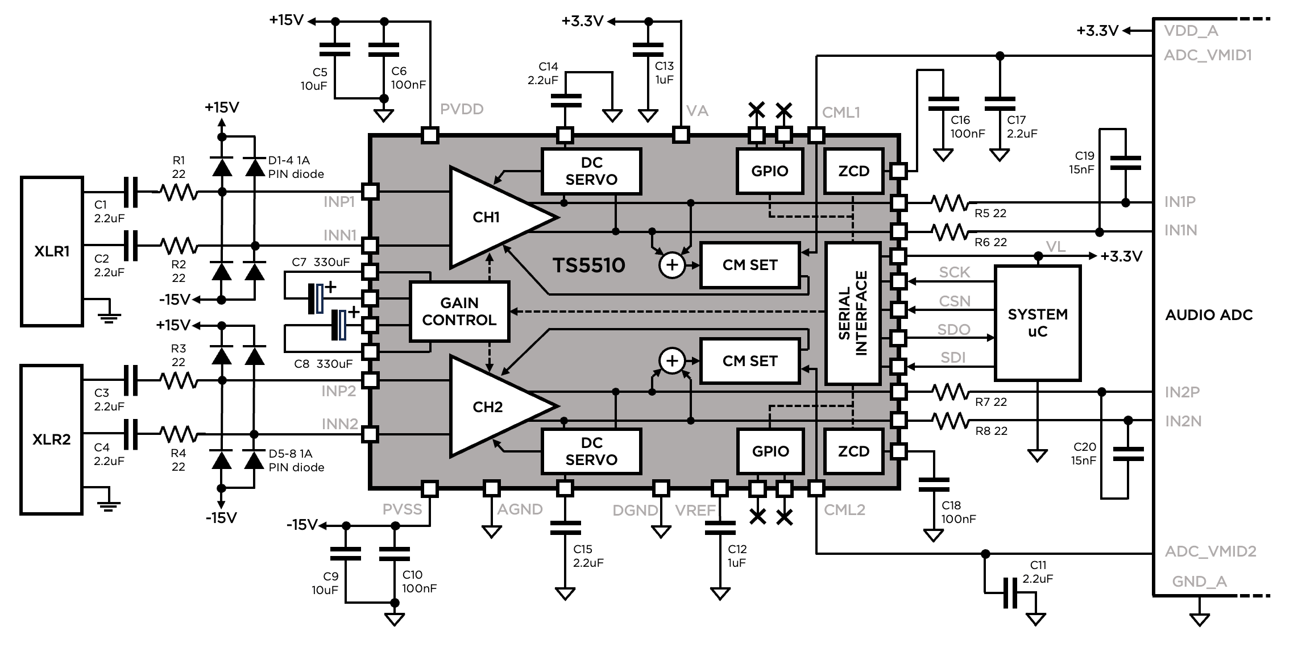

Application Diagram
Block Diagram
Specifications
| Parameter | TS5510 |
|---|---|
| AFE Channels | 2 |
| Gain Range | -18dB to +47dB, 1dB Increments |
| Signal Path | Fully Differential |
| Equivalent Input Noise (EIN) | -128dBU (AES-17) |
| Digital Gain & Mode Control | SPI (Mode 0) |
| Output Drive | 2Vrms or 3Vrms Balanced, full scale |
Documents
Datasheet
| Document Name | Description | |
|---|---|---|
| TS5510 Datasheet | Product Datasheet |
Evaluation
| Document Name | Description | |
|---|---|---|
| TS5510 PCB Layout | Product PCB Layout | |
| TS5510 Schematics | Product Schematics | |
| TS5510 User Guide | Product User Guide |
Other
| Document Name | Description | |
|---|---|---|
| TS5510 Whitepaper | The Current Conveyor Revolution: Toward a Universal Audio Analog Front End with the Triad TS5510 |
Order TS5510
| Sales Product Name | TS5510 |
|---|---|
| Orderable Part Number (OPN) | TS5510 |
| Product Status | In production |

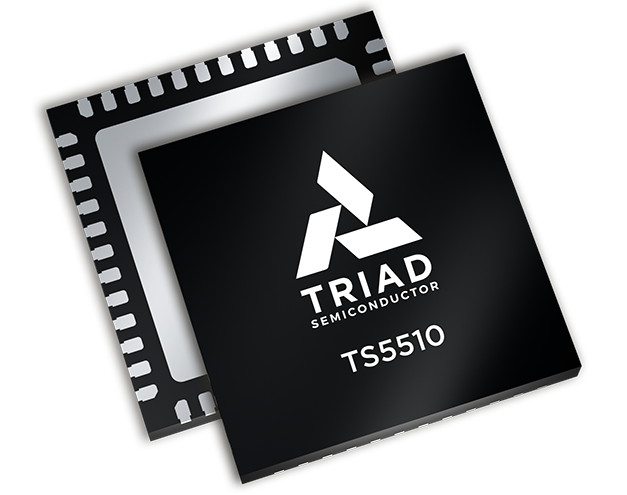

| Package Type | QFN 7 x 7 mm 48 pin |
| Order Online |
|
| Lead Free | YES |
| Halogen Free | YES |
| RoHS / Reach Compliant | YES |
| Moisture Sensitivity Level (MSL) Rating | 3 |
| Country of Origin | South Korea |
For any questions regarding your order, please contact Triad Semiconductor for assistance. We’re here to help!
Contact for more infoOrder EV Module
| Sales Product Name | TS5510 |
|---|---|
| Orderable Part Number (OPN) |
TS5510 TS5510 EVK |
| Product Status | In production |
| Order Online |
|
For any questions regarding your order, please contact Triad Semiconductor for assistance. We’re here to help!
Contact for more infoLearn More
